Description

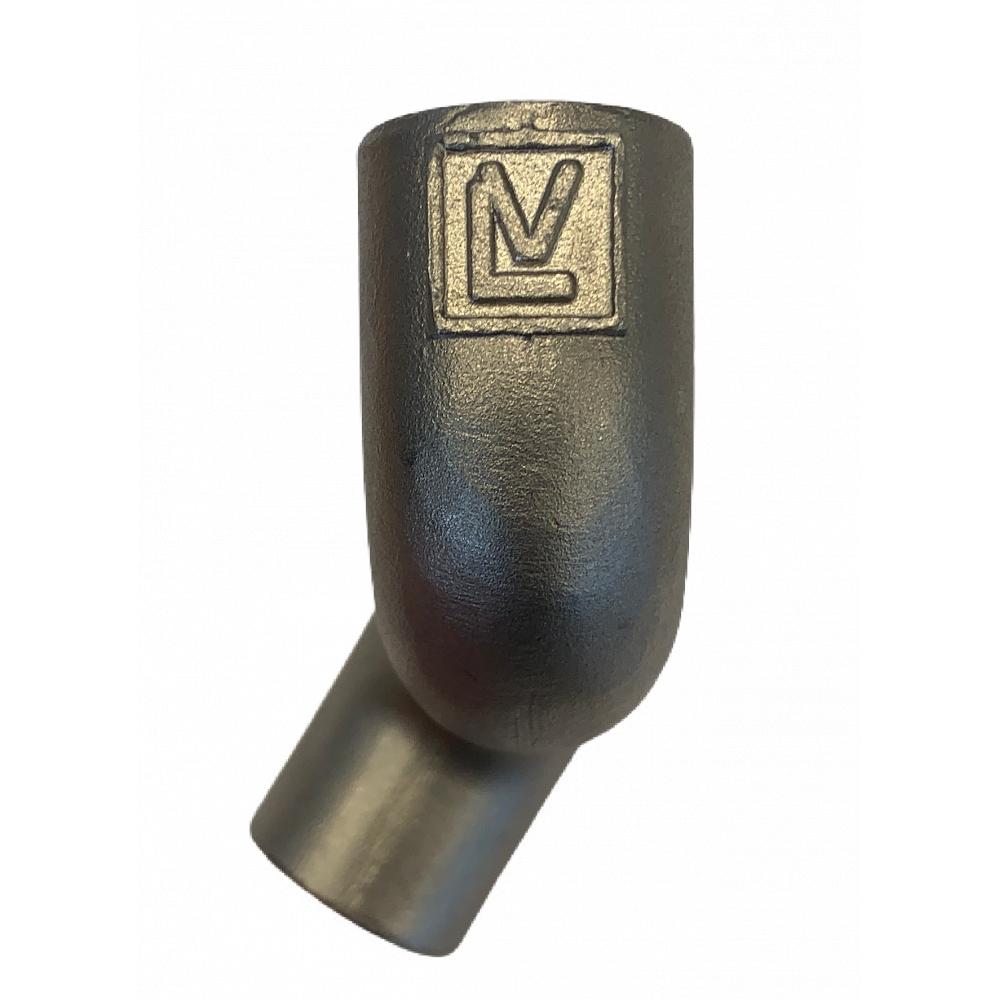

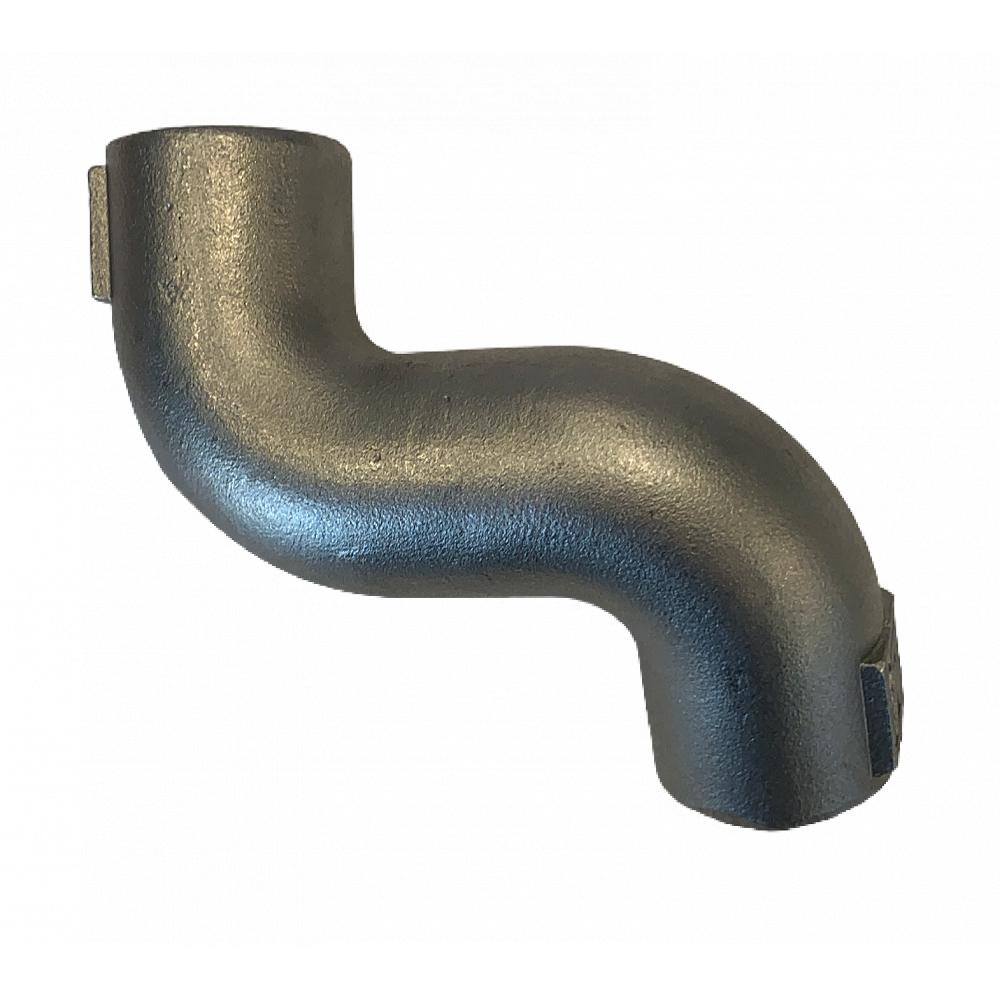

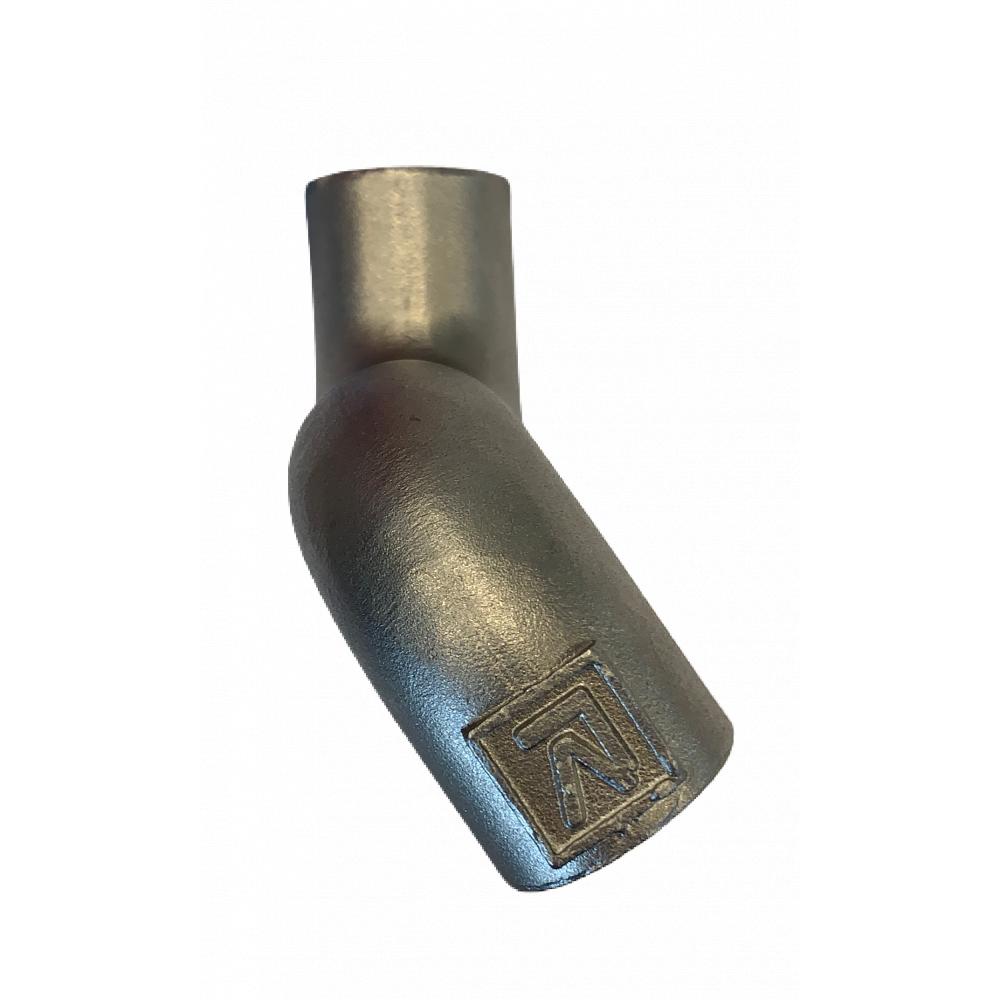

The Verba RVS The ½” S-bend is a robust and efficient solution for applications requiring a 30-degree angle. Made from high-quality 304 stainless steel, this S-bend features a half-inch internal thread at both the top and bottom. This design replaces two stainless steel elbows or fittings joined together, saving a great deal of labour time. Furthermore, the S-bend is more resistant to leaks, making it a reliable choice for installations in livestock housing.
Efficiency and reliability
The Verba stainless steel S-bend offers significant advantages in terms of efficiency and reliability. As this S-bend replaces two stainless steel elbows, you save not only on installation costs but also on time. Furthermore, its robust design significantly reduces the risk of leaks. This ensures your system continues to function more reliably, even in demanding conditions.
Applications in slurry tanks and dosing units

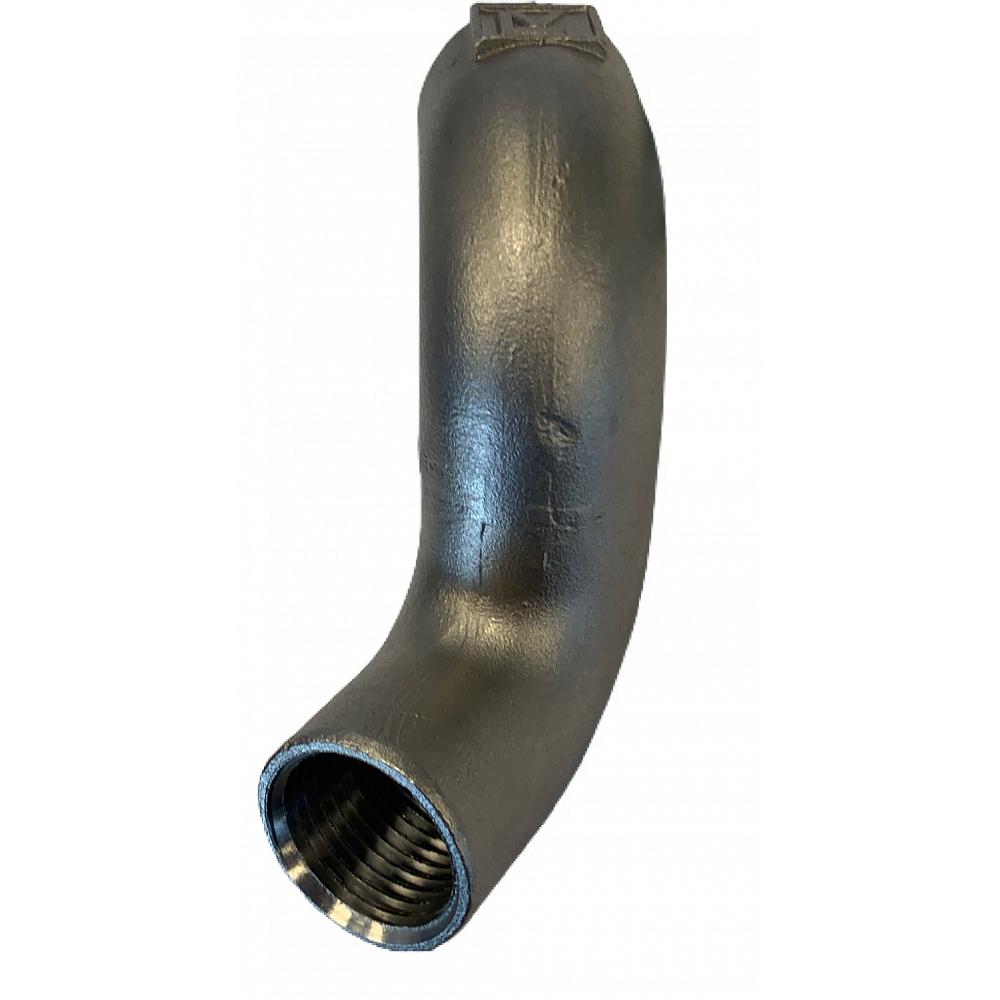

This stainless steel ½” S-bend is often used in Verba porridge pots and dosing units. In these applications, the nipples must point forwards at an angle of 30 degrees. At the top of the S-bend, you can easily screw in a ½” pipe with external thread, whilst at the bottom you can fit a pipe of the same size or a ½” drinking nipple. This makes the S-bend versatile and suitable for a wide range of applications.
Technical specifications

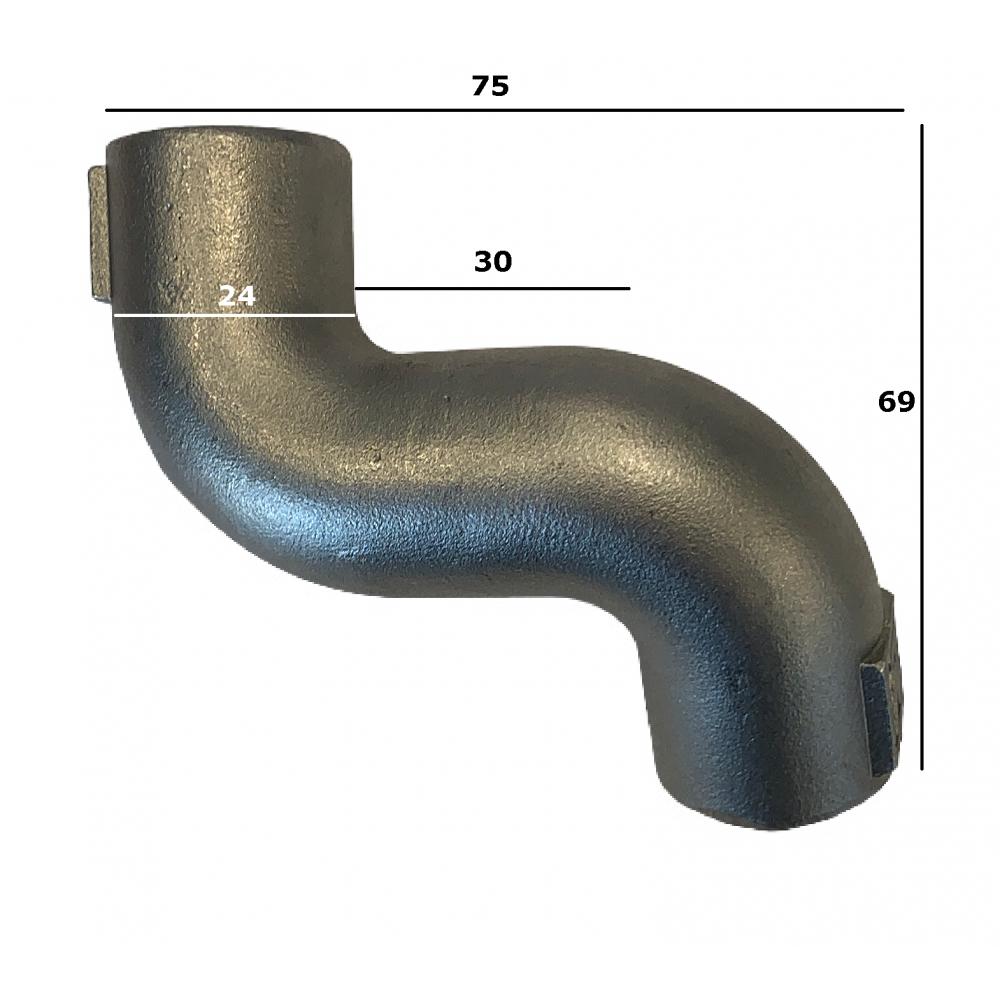

The Verba stainless steel S-bend is 69mm high and 75mm wide, with a distance of 30mm between the two outlets. These dimensions make the S-bend suitable for a wide range of installations. Whether you’re working on a new installation or looking to upgrade an existing one, this S-bend offers an efficient and durable solution.
