Description

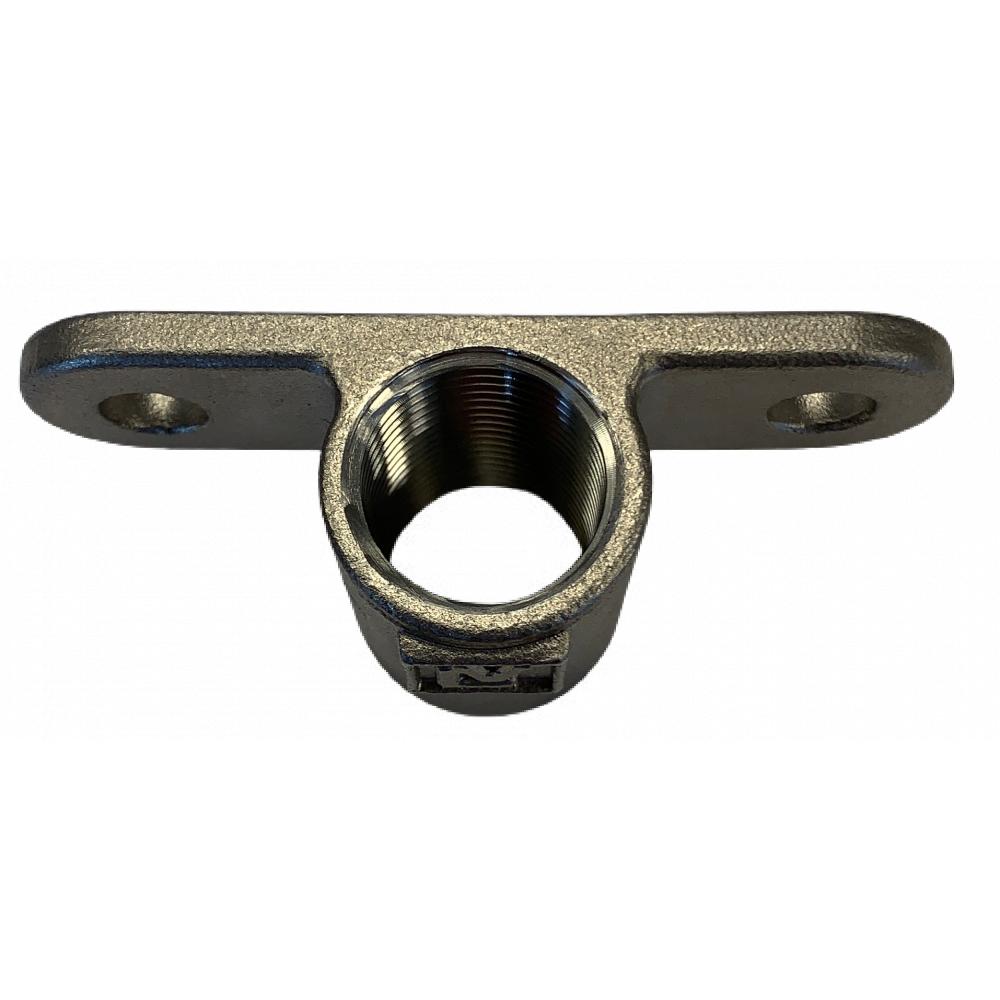

This sturdy RVS The ½” nipple tube bracket on the Verba base plate is designed for fitting half-inch drinking nipples and externally threaded tubes. The bracket is ideal for drinking troughs for piglets, pigs and sows. Thanks to the internal half-inch thread, both at the top and bottom, you can easily attach the nipples and tubes. This makes the nipple tube bracket a reliable choice for various applications in the piggery.
Easy wall mounting
The Verba stainless steel mounting bracket has two 9mm diameter holes in the stainless steel wall plate. This allows you to easily mount the bracket to the wall. This feature ensures that the nipple pipe bracket remains securely in place. This is essential for the stability of the drinking water system in the barn. Although the base plate is supplied without wall-mounting fixings, you can easily combine it with standard fixings.
Durable and robust construction
The ½” stainless steel nipple pipe bracket is made from high-quality stainless steel. This ensures the bracket has a long service life and can withstand the harsh conditions found in a livestock barn. Its robust construction ensures that the bracket can effortlessly support the weight of the drinking nipples and pipes. This ensures that your drinking water system continues to function efficiently and reliably.
Technical specifications

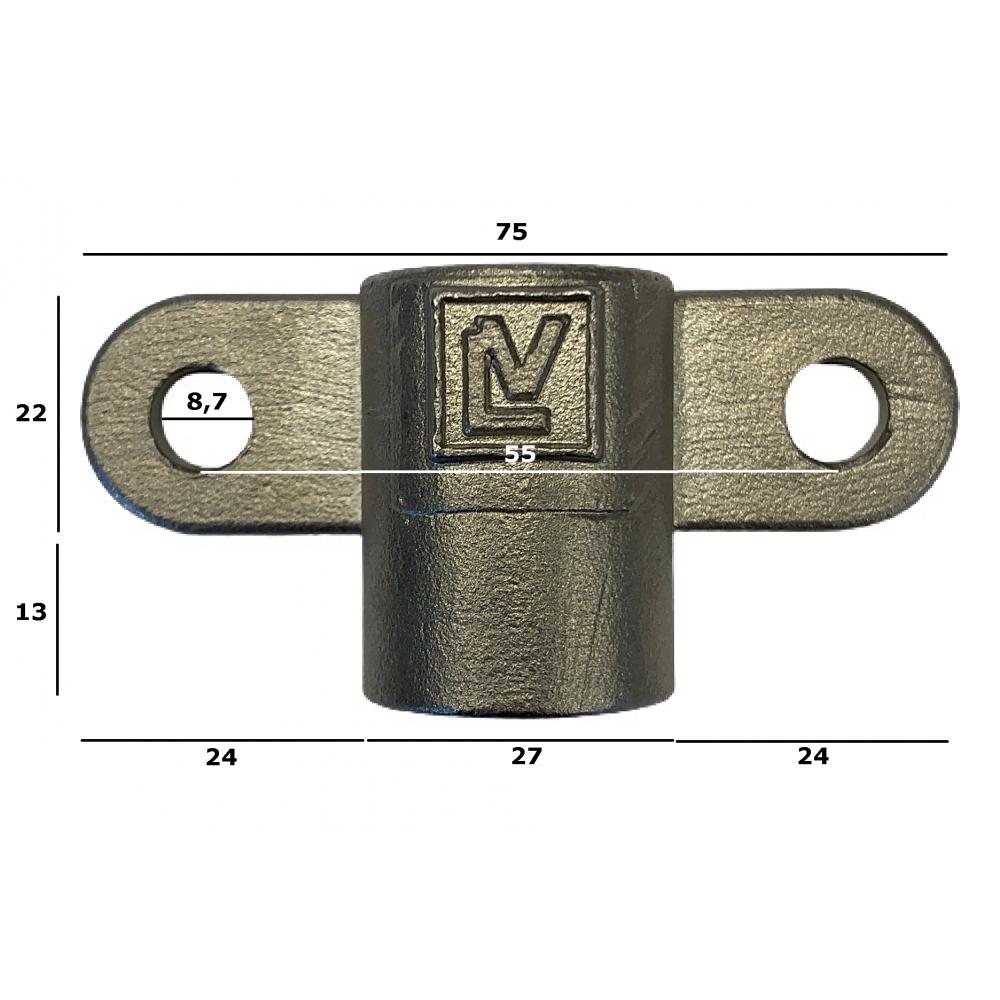

The stainless steel nipple pipe bracket is 75mm wide. The holes are spaced at a centre-to-centre distance of 55 mm. These dimensions make the bracket suitable for various installations in the barn. Whether you are working on a new installation or wish to improve an existing one, this mounting bracket offers a robust and durable solution.
